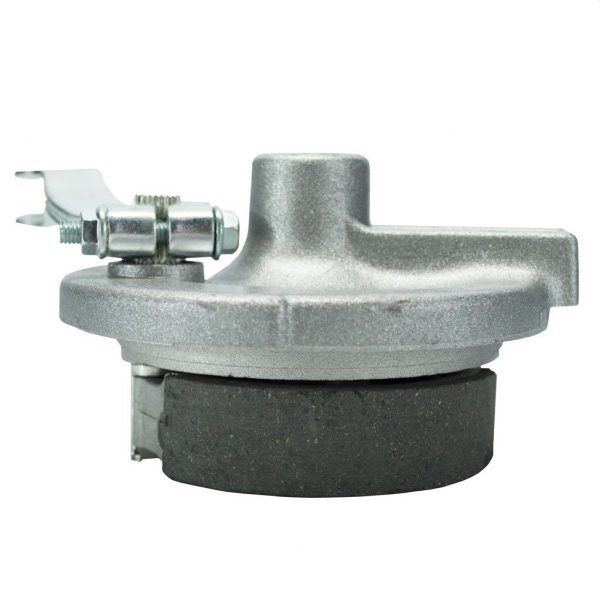

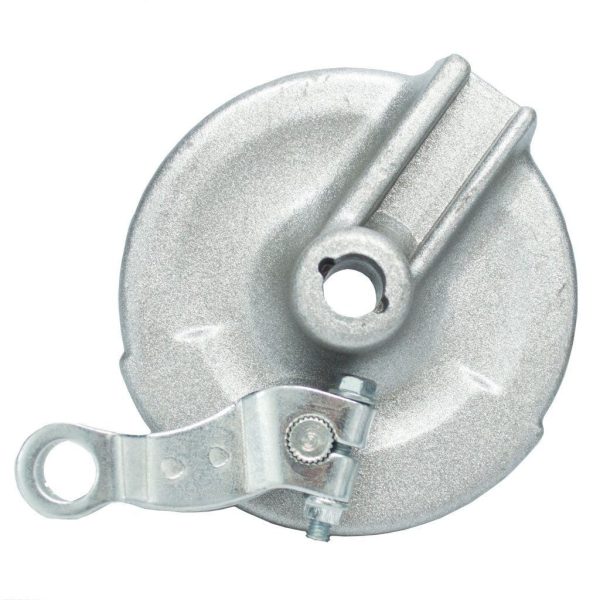

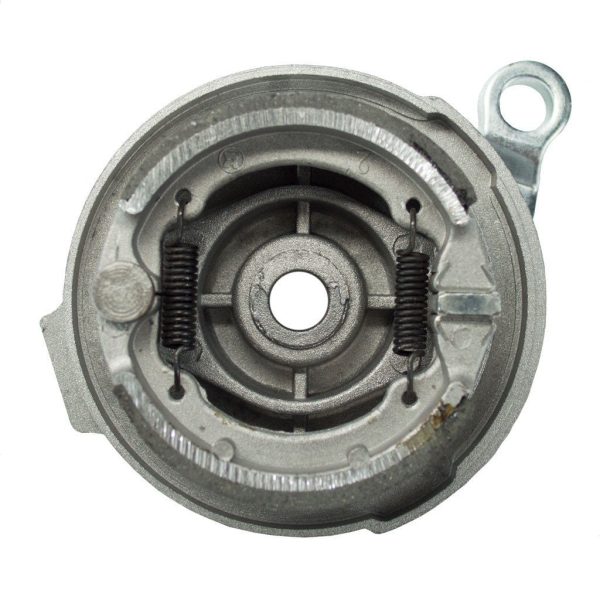

Brake assembly specs:

•  Backing plate diameter: 98.5mm (3.85 in) at smallest point
•  Plate diameter: 106.25mm (4.18 in) at widest point
•  Center hole inside diameter: 12mm (0.475 in)
•  Fits dirt pit bikes with 10.0 inch tires.
•  REAR
•  Brake shoes diameter: 78.35mm (3.0 in)

• Known to fit most 10.0 inches rear dirt bike rims with drum brakes such as, Honda CRF50, XR50 and more.

  Fits the Tao Tao DB10 dirt bike.

  Shipping details:

  Do you need your brake assembly fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
