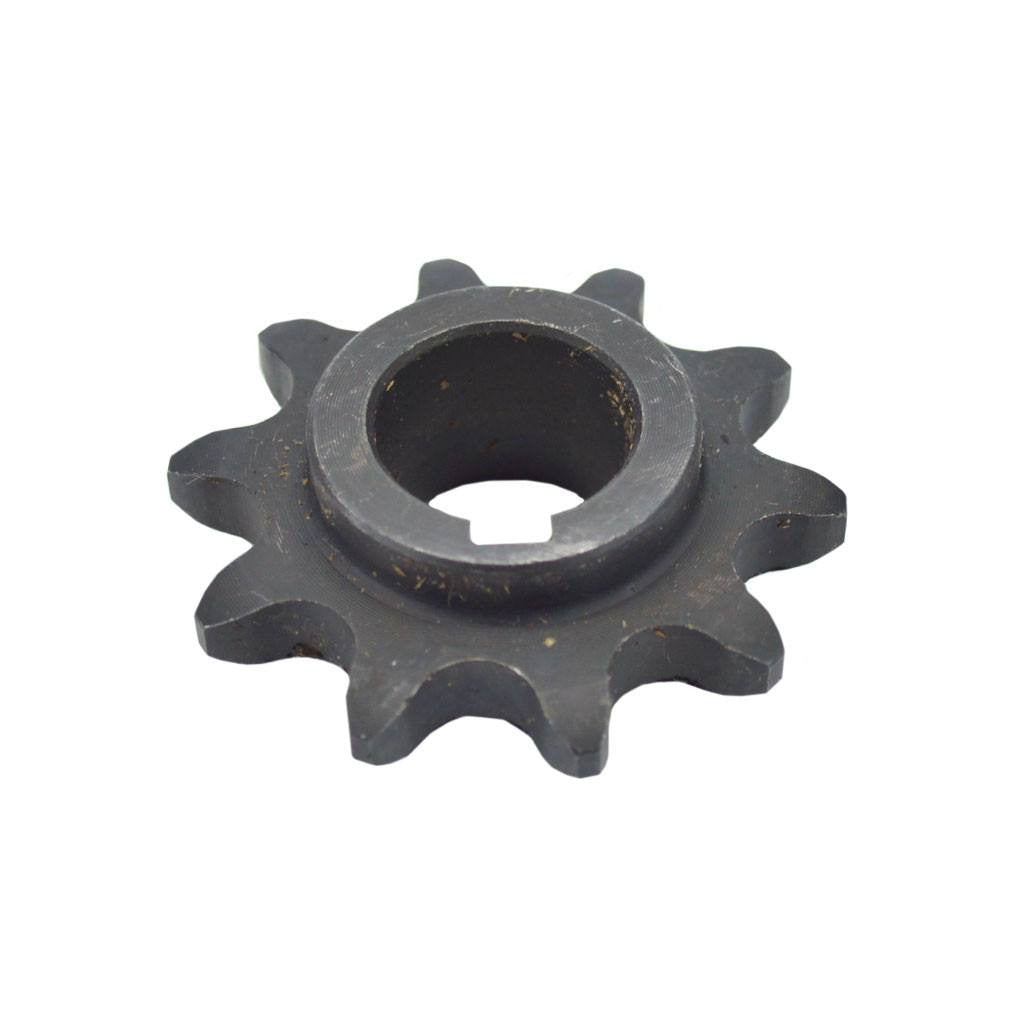

This 10 tooth front sprocket is used on the Axis M200, Coleman B200C, B200R, B200V, BT200X, CT200U, CT200U-EX and RB200 mini bikes.  It also fits the Massimo MB200 mini bike.  It may be used on other applications as well.

Sprocket details:

• Small chain sprocket
• 10T
• ID 17mm (0.66 in)
• OD 46mm (1.81 in)
• Width: 16mm (0.63 in)
• Uses 5x5x28 key – our part# 2825-GB1096-79 – Not included
• Used with 420 chain only
• 23572A   32208563   MB200-246
• 124951  TT-124951

• Be sure to measure your chain or current sprocket before ordering.  420 chain has 1 2 inch pitch and 5 16 inch roller diameter.  Most Chinese sprockets have the chain size and teeth count stamped into the metal.

  Shipping details:

  Do you need your sprocket fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
