This Chinese stator magneto with flywheel is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters. This stator fits GY6 125cc and 150cc models.

Stator description:

• 11 coils (1 wrapped)
• AC

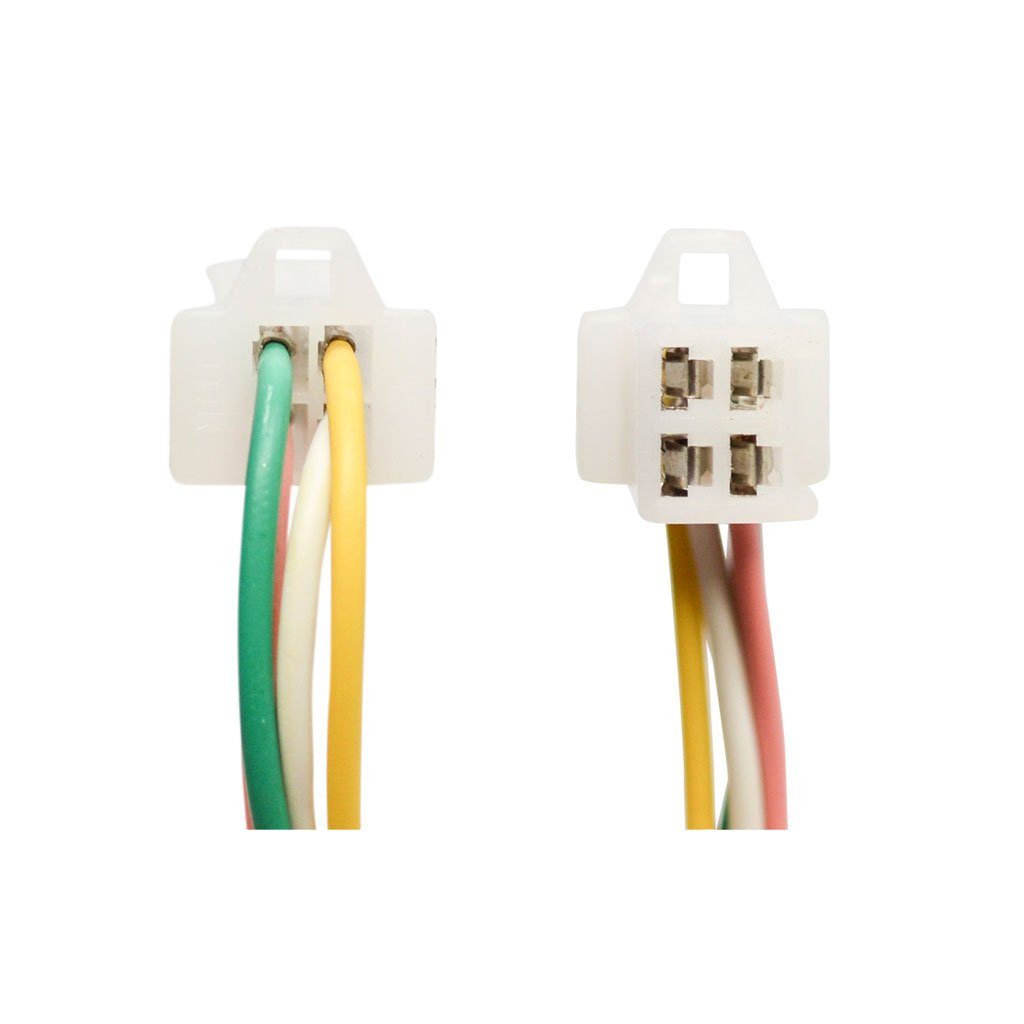

• 7 wires – 4 wire plug – 2 pigtail (+1 trigger wire)
• 2 bolt mounting
• Pick up trigger wire – single wire
• Center hole measurement: 29mm (1.14 in)
• Overall measurement:  89mm (3.51 in)
• Bolt hole spacing: 41mm (1.61 in)
• Bolt hole diameter: 6mm (0.23 in)
• Trigger wire mounting center-to-center: 33.6mm (1.32 in)
• Compatible with GY6 125cc and 150cc 4-strokes

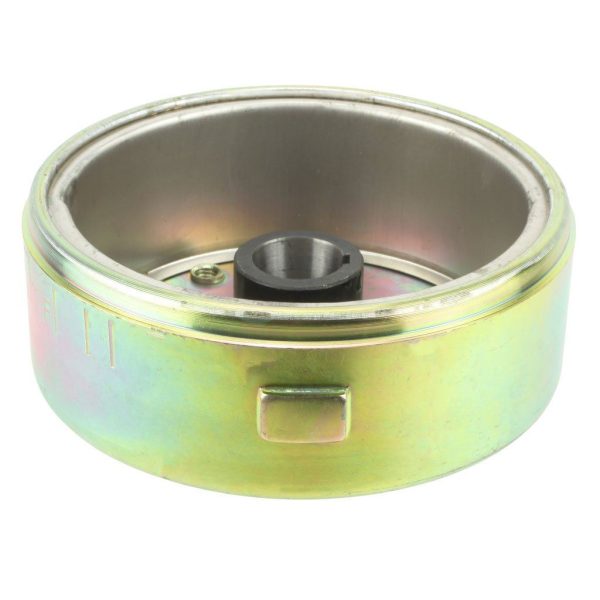

• Flywheel description:

  • Outside diameter: 109.4mm (4.31 in)
  • Inside diameter: 15.5mm (0.61 in)
  • 4 mounting holes center-to center adjacent holes: 53.4mm (2.10 in)

  • Shipping details:

    Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

    Electrical parts are not returnable.  Please double check before ordering.
