This fender set fits several brands and models of kids atvs.  Please check the pictures and measurements close to insure a correct fit on your machine.

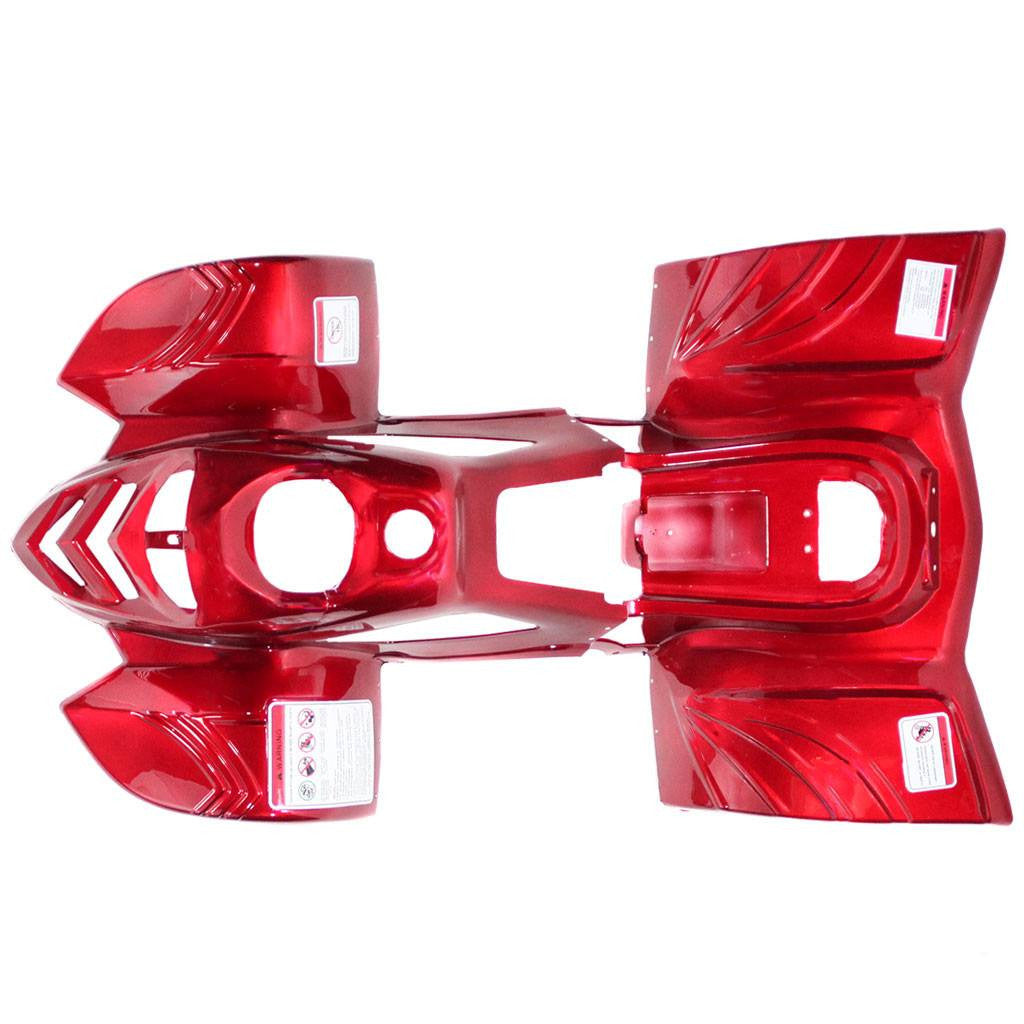

Fender set details:

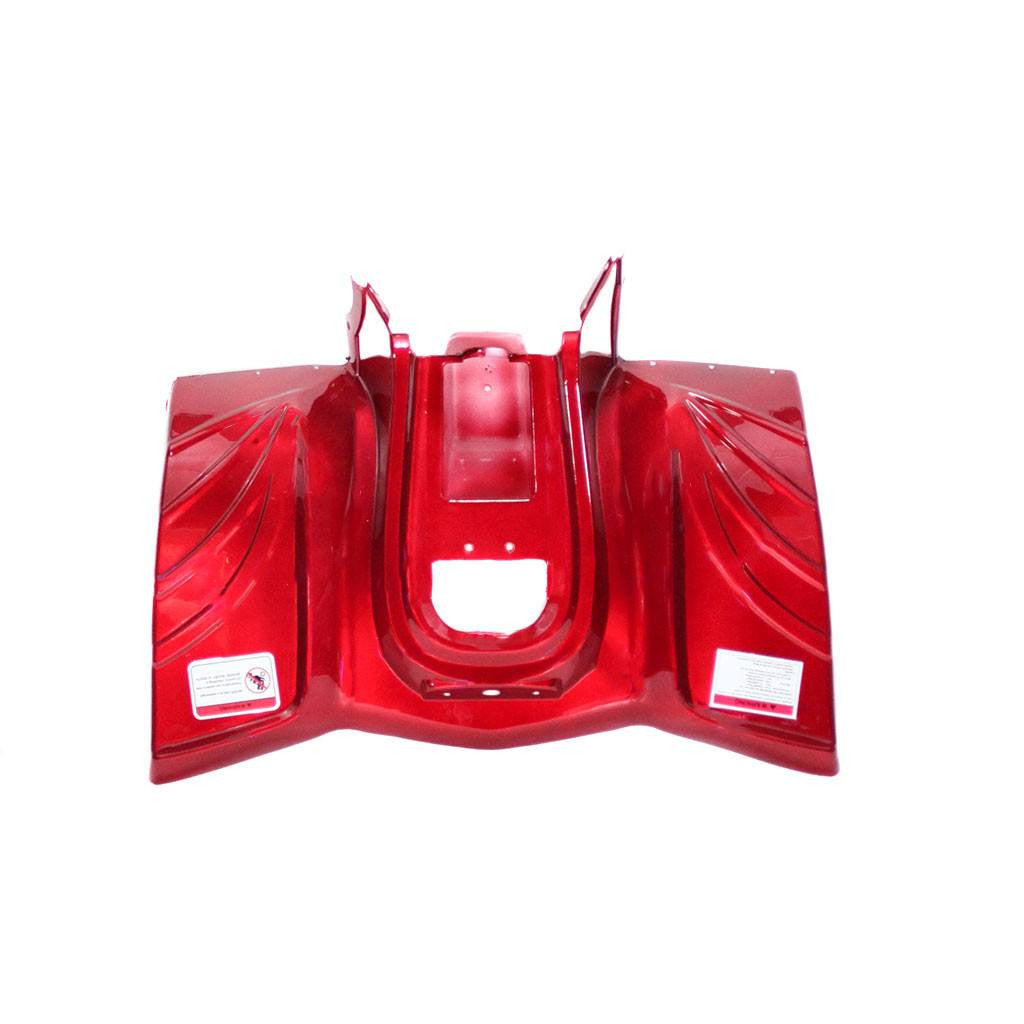

• Rear fender width: 66cm (26.0 in)
• Rear fender length: 49.5cm (19.5 in)
• Battery box molded into rear fender
• Battery box measurements: 125mm x 84mm x 90mm (L x W x H)
• Battery box measurements (standard): 4.92 in. x 3.31 in. x 3.54 in.
• Mounting bolt holes: 38mm (1.5 in) center to center
• Tail light mounting holes: 85mm (3.35 in) center to center (outside holes)
• 3 holes on front of rear fender to mount foot rests

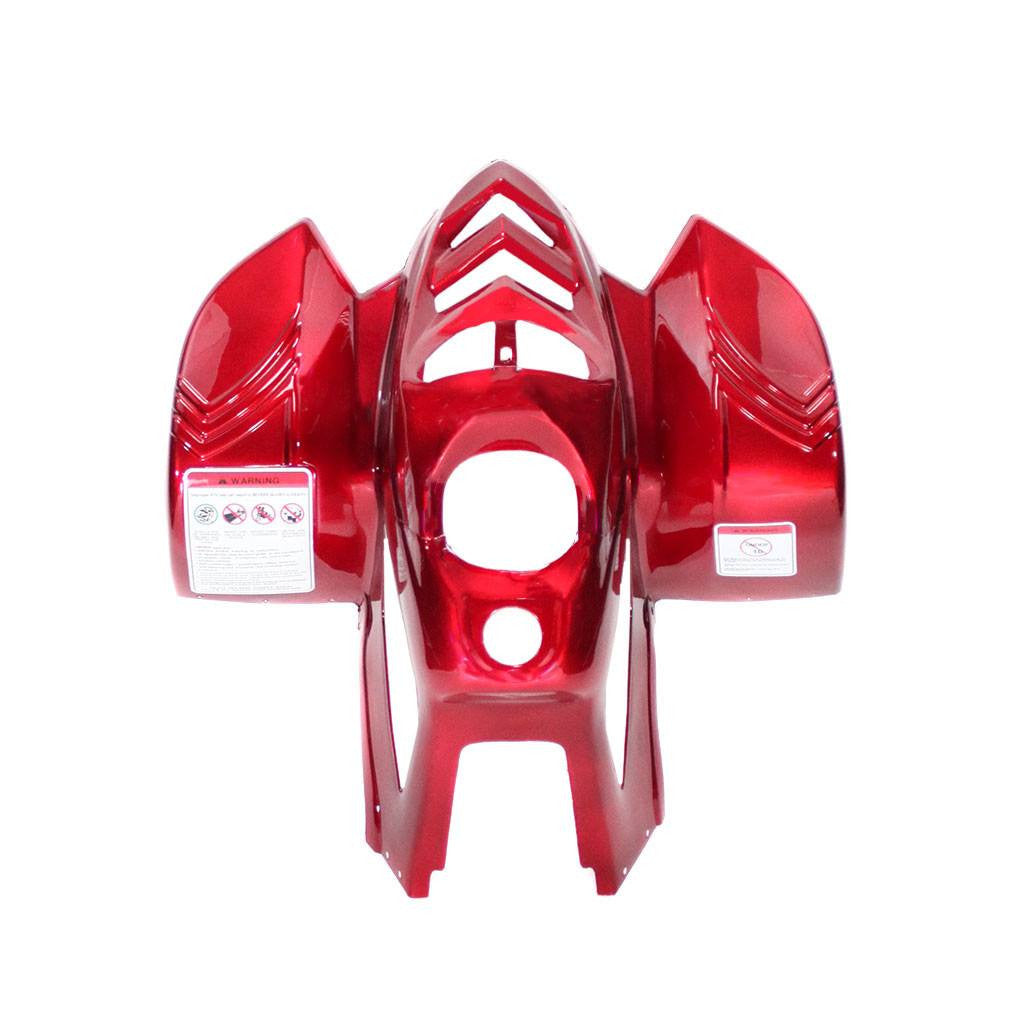

• Front fender width: 61.6cm (24.25 in)
• Front fender length: 67.3cm (26.5 in)
• Sides are cut out for inserts – inserts NOT included
• 3 holes on the back of the front fender to mount foot rests
• Nose mounts with 6 screws and is already attached to front fender.  Can be removed for easy install.
• Nose length:  42.55cm (16.75 in)
• Nose width: 22.22cm (8.75 in) at widest point
• Sold as a SET only – front and rear

• Known to fit Tao Tao ATA110B, Coolsports, Mudcat and many more!   Please see pictures in listing for model these are known to fit.

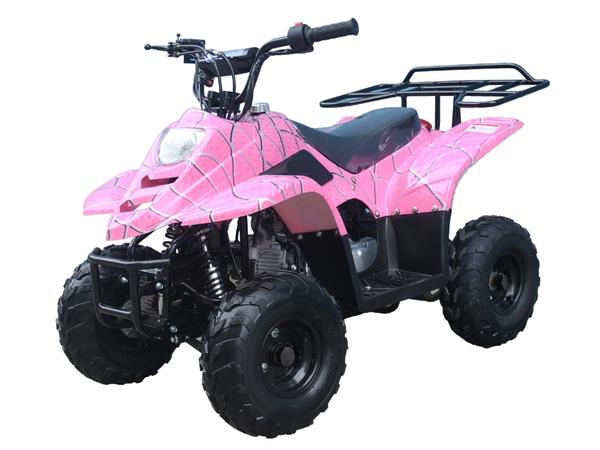

  Fits the Tao Tao ATA110B, ATA110B1, ATA110B3, Boulder B1 and Eagle 110 BI atvs.

  You might also be interested in our ATV Body Fender and Footrest Bolt and Nut Kit.



  Fender inserts link:

  https: www.vmcchineseparts.com products chinese-atv-fender-plastic-front-vent-insert
